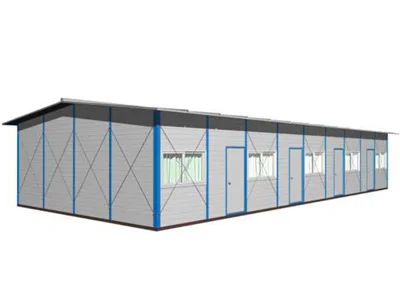

Prefab K Type House
Kit House is a kind of highly factory prefabricated modular house, which can be quickly. K is the modular size between columns, 1K = 1820mm.
Kit House can be made maximum 3 floors. The price of Prefab K Type House is around 30 - 40 USD per square meter.
Size of House
The standard wideness can be 3k, 4k, 7k or 9k. The Length can be any size less than 25k. That means the maximum house size can be 16mx46m.
Design Load
The prefabricated modular house is designed based on the assumptions of a snow load of 50kg/m2, a wind speed of 0.5kn/m2, degree 7 of earthquake conditions. The roof slope is 20 degree.
Steel Frame
The prefab home kits adopt light gauge steel as the structural frame. The structural elements are designed in module size and 100% connected by bolts.
The steel profiles used for this cabin are same as what we used for standard flat packed container house and they are galvanized before painted. That guarantees the product lifespan is more than 30 years against bad natural conditions such humid and rainy.
We can also offer a range of alternative external cladding options, including Timber, Plastic Timber, PVC Siding or Brick Effect Fiber-cement Board if preferred.
Wall (External and Internal)

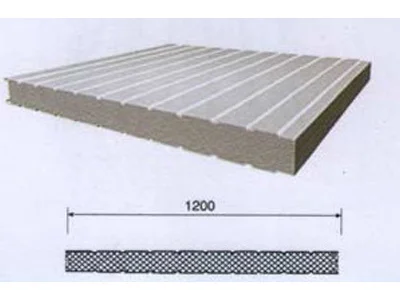

Both internal and external wall is made from pre-composite sandwich panel made up from pre-colored galvanized steel plate of 0.35 mm. in thickness at inner/outer face and EPS (R Value 33.30) insulation of 50mm in thickness and 12kg/m3 in density.
Roof
There are two ways to make the roof. One way is using pre-composite sandwich panel made up from pre-colored galvanized steel plate of 0.35 mm. in thickness at inner/outer face and EPS (R Value 33.30) insulation of 50mm in thickness and 12kg/m3 in density. Another way is the traditional way to composite wire-mesh, glass-wool roll and pre-colored galvanized steel shingle on site.
Advantage
Modern prefab home kits have the following advantages:
1. Recyclable：The whole house can be disassembled easily and re-erected on another place quickly. One house can be re-used for at least 3 times, only 10% of materials need to be replaced during re-erection.
2. Flexible on sizes.
3. Quick installation：Six skill workers can finish 200m2 in two days.
4. Environmental protection: The materials can be recycled and no construction waste left behind except concrete slab.
Usage
Prefab building kits can be used as site office and workers accommodation.
